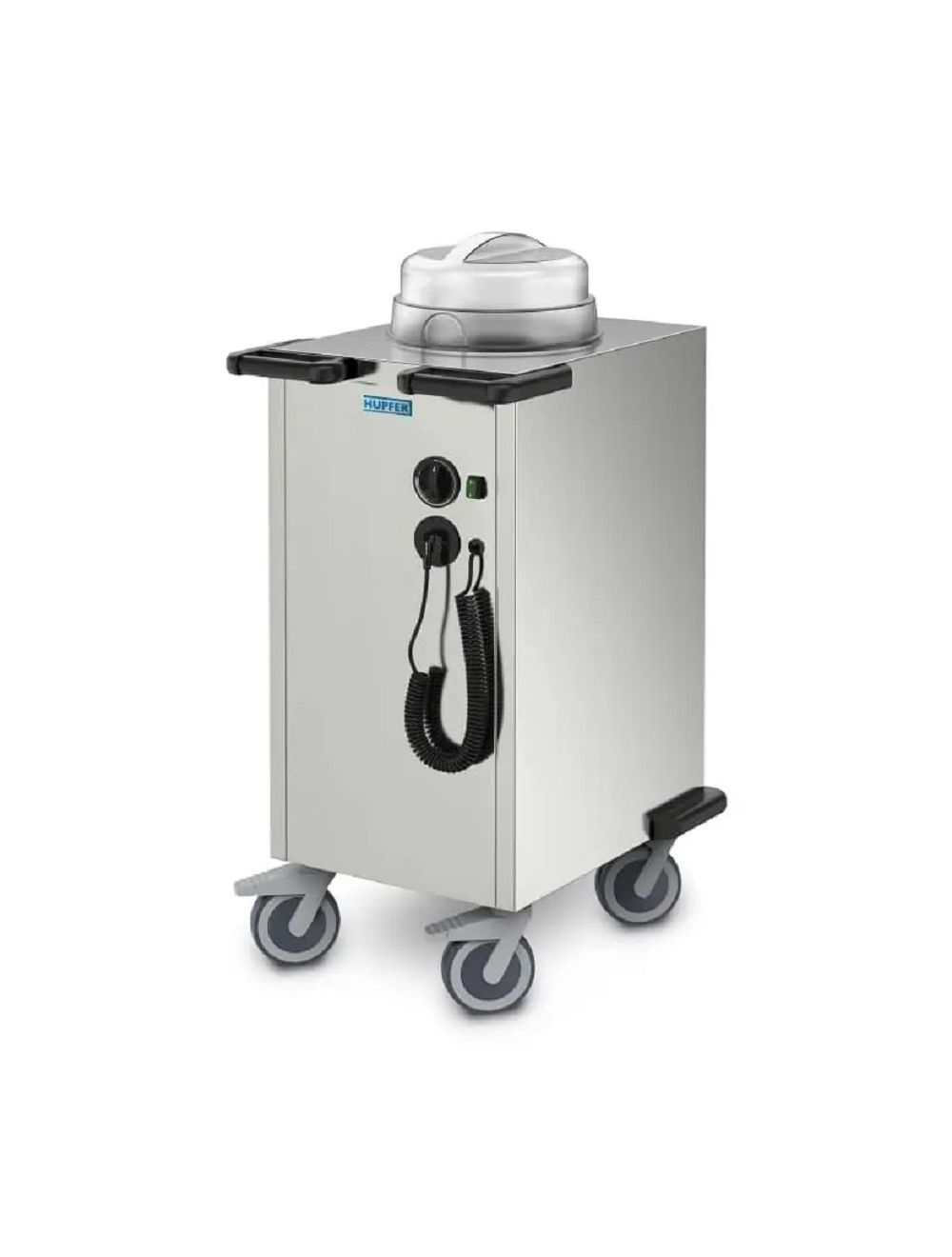

Hupfer TEH-1-V19-26 Mobile Plate Dispenser. Heated. Single Tube. Suit 190-260mm diameter plates. Capacity up to 83 plates

Product Description:

Solid self-supporting structure made from stainless steel.

Plate stacker to receive round plates, Ø 190 to 260mm, within 1 statically heated stacking tube. Constant dispensing height by means of manually adjustable tension spring system. Adjustment of the size of the crockery without the necessity of tools, by means of three plastic-coated directions for each tube. Easy cleaning of the stacking pit from the top, each stacking platform additionally equipped with a cleaning aperture in the bottom plate.

Heating by means of a stainless steel heater, optimum thermal isolation due to a high quality special insulation. Operation by means of a ON/OFF-switch with integrated control lamp. Infinitely adjustable and ergonomically shaped temperature control unit at the face side, visible at great distance. Temperature limiter according to VDE (Association of German Electricians): Inherently stable helix cable with angle plug, fastener for the plug as cone-shaped dummy socket.

TECHNICAL DATA

• Connected Load : 0.90 kW
• Temperature Range: 30 °C to 115°C
• Maximum Temp. of plates: 70 °C
• Length of the Connecting Cable: 1800 mm
• Thermoelectric supply: Tubular heating element
• Maximum plate size capacity: ø 190 to 260 mm crockery
• Net Weight of the Appliance: 30 kg
• Protection: IPX5
• Load Capacity: 70 kg
