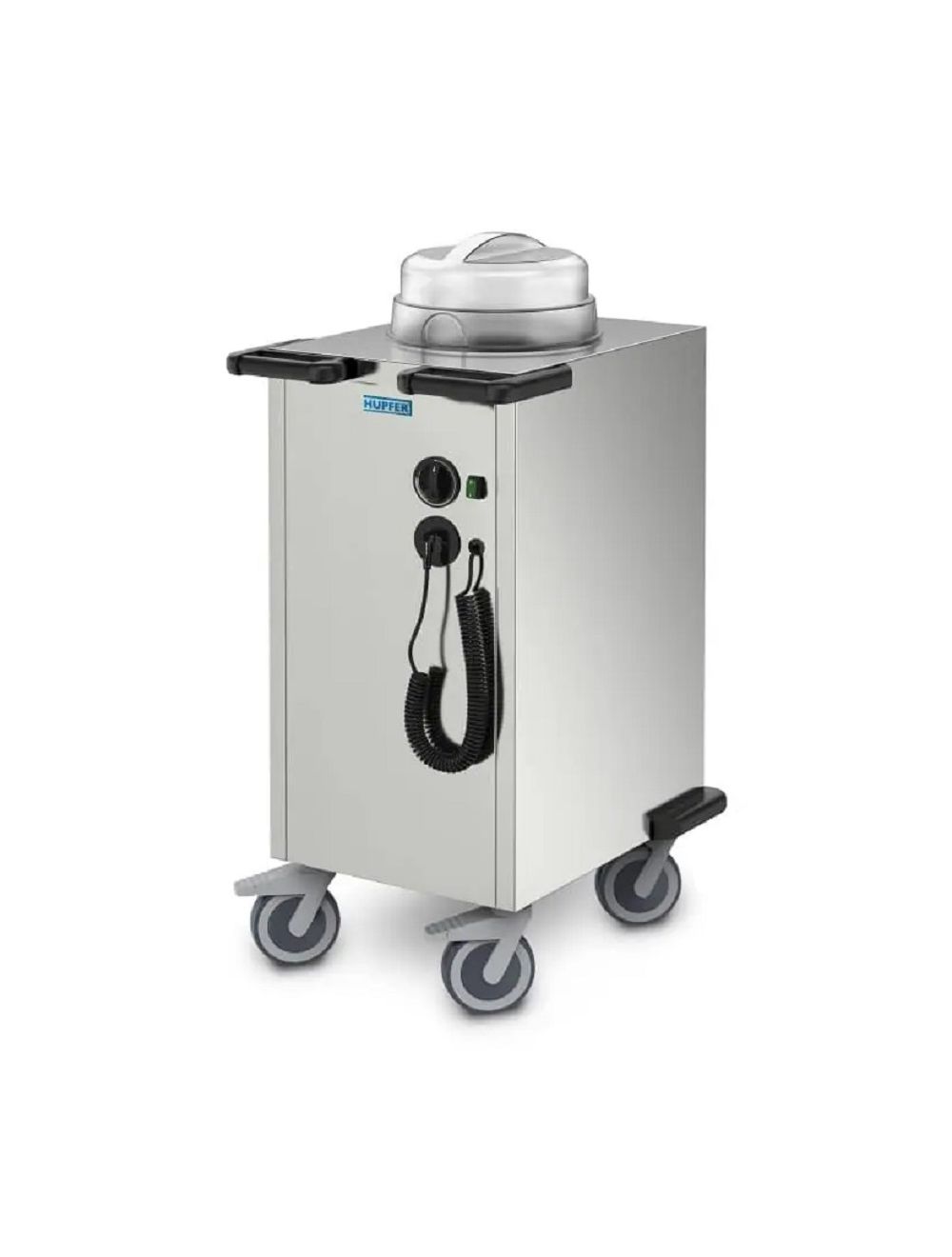

Hupfer TEH-1-V18-33 Mobile Plate Dispenser. Heated. Single Tube. Suit 180-330mm diameter plates. Capacity up to 61 plates

Product Description:

Mobile single stack plate dispenser in self-supporting and hygienic design, made of high-quality stainless steel. Features closed, smooth outer housing with thermal insulation through high-quality special insulation. Inner panelling on all sides, with high-quality mirror sheets for optimised energy usage. Open stacking compartment and stacking platform in plastic-coated rod design. Includes three crockery guides with plastic coating, variably adjustable without tools. Offers consistent output height thanks to manually adjustable stainless steel tension spring system. Easy cleaning of stacking compartment from above and via a cleaning opening in the base plate.

The Hupfer plate dispenser TEH-1-V18-33 has the lowest empty weight in comparison to other products, while two push handles installed on the corners of the unit ensure optimal handling properties. The ergonomically shaped push handles also guarantee effective protection against injuries to the hands of operators. The installation height of 900 mm is the standard working height in food distribution.

TECHNICAL DATA

• Connected Load : 0.90 kW
• Temperature Range: 30 °C to 115°C
• Maximum Temp. of plates: 70 °C
• Length of the Connecting Cable: 1800 mm
• Thermoelectric supply: Tubular heating element
• Capacity: Up to 53 plates w/o cover, 61 with cover
• Maximum plate size capacity: ø 180 to 330 mm crockery
• Net Weight of the Appliance: 30 kg
• Protection: IPX4
• Load Capacity: 70 kg
