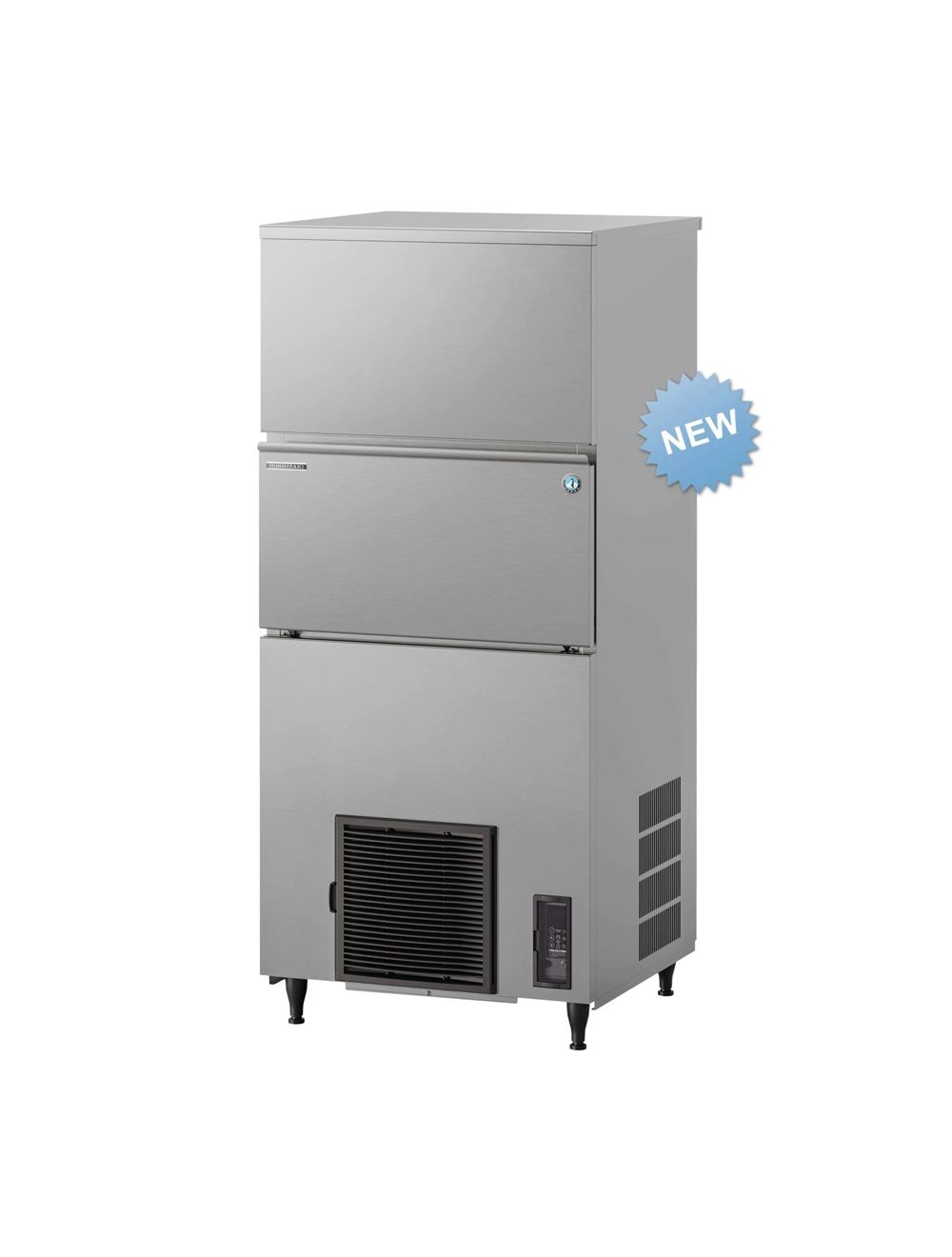

Hoshizaki IM-240PE-23-F DRAIN PUMP Cube Ice Maker Up to 165kg Ice per 24 hours Bin Storage approx. 110kg

Be the first to review this product

RRP $13,900.00 ex GST Our Price $8,906.00 ex GST Our Price $9,796.60 Inc GST

Cube Ice Machine, Drain Pump - Self Contained
Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
165kg Ice production per day @ 10°C Air temp; 10°C Water
145kg Ice production per day @ 21°C Air temp; 15°C Water
140kg Ice production per day @ 32°C Air temp; 21°C Water
110kg (storage bin control setting 80kg)
Cooling: Air
AC Supply Voltage: 1 PHASE 220-240V 50Hz/ 10 AMP Plug
Amperage: Running: 3.8A Rated Motor: 3.8A Starting: 27A
Refrigerant Charge: R290 / 147g
Operating Ambient: 1-40°C
Water Supply Temp.: 5-35°C
Voltage Range: Rated Voltage ±6%
Electric Consumption: 870W
Electrical Circuit Breaker Protection: 5A
Heat Rejection (AT 32°C, WT 21°C): 2580W
Accessories Included: Installation kit, Legs, Scoop

Warranty: 3 years parts and labour

Daily Rental: $16.15 Inc GST

Details

Product Description:

The Hoshizaki IM-240PE-23-F is a flexiCUBE self- contained cuber designed to produce up to 165kg of Hoshizaki's word-renowed hard and slowly melting 28mm cube every 24 hours.

Maximizing Space with Enhanced Flexibility

Features:

Sustainable & Efficient
Designed with sustainability in mind, this model uses eco-friendly R290 natural refrigerant and a variable-speed magnetic DC pump motor to reduce both energy and water consumption. A stand-by function high-performance foamed insulation further enhance overall effeciency.
Durable & Hygienic Construction
A closed water circuit and Closed Cell Sytem protects against contamination while ensuring individually foamed, high-quality ice cubes. Automated cleaning, food-grade stainless steel components (AISI 430), and an optional scoop holder kit support maximum hygiene and long-term durability.
Advanced Technology
Smart water-flow control automatically adjust throughout the ice-making cycle to produce clear, consistent cubes. Built-in cleaning notifications for the water circuit and condenser, along with an adjustable dimple size control panel, provided added precision and control.
Smart & Long-Lasting Design
Premium internal components and advanced motor technology reduce wear and extend the unit's lifespan. The easily removable water tank and DC pump simplify maintenance and servicing.
Compact & Space-Saving
An integrated drain pump allows flexible installation up to 10 meters horizontally and 1.5 meter vertically, making it deal for locations where space or drain positioning is limited.
Plug & Play Installation
With a built-in drain pump and user-friendly control panel, installation and setup are straightforward, allowing the unit to be operational quickly and efficiently.

Production Capacity per 24hours:

Approx. 165kg @ 10°C Air temp; 10°C Water
Approx. 145kg @ 21°C Air temp; 15°C Water
Approx. 140kg @ 32°C Air temp; 21°C Water

Water Consumption per 24hours:

Approx. 0.68m³ @ 10°C Air temp; 10°C Water
Approx. 0.37m³ @ 21°C Air temp; 15°C Water
Approx. 0.36m³ @ 32°C Air temp; 21°C Water

More Information

More Information
Supplier	Hoshizaki
Power	Please refer to Product Spec Sheet
Net Weight of Equipment (kg)	102
Packaged Width (mm)	805
Packaged Depth (mm)	760
Package Height (mm)	1684
Product Width (mm)	704
Product Height (mm)	1580
Product Depth (mm)	665
