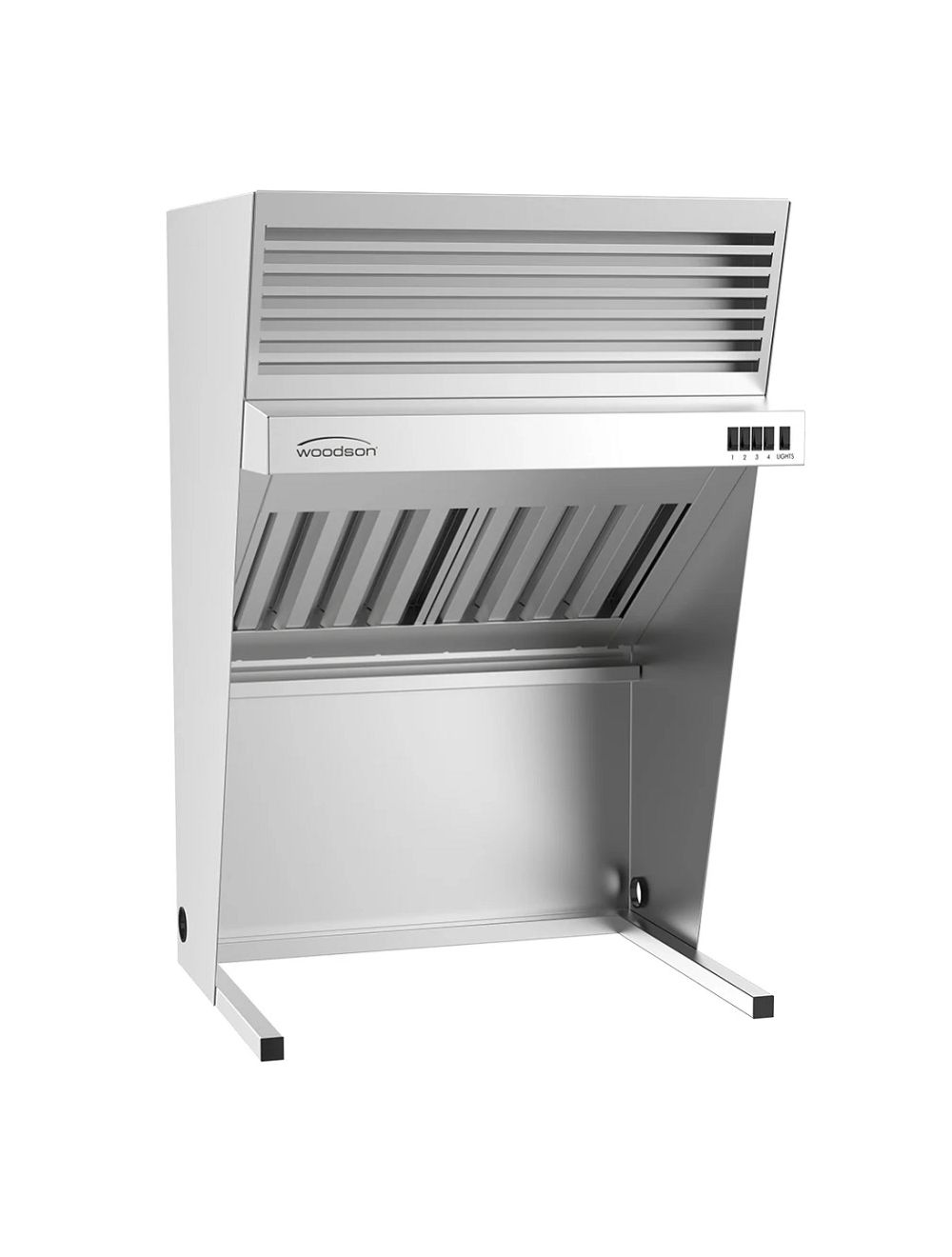

Woodson W.CHD1000 Countertop Filtration Systems

Product Description:

• Improves cooking environments where ducted local exhaust systems are not required by the National Construction Code (NCC)
• Reduces greasy deposits forming on benches, floors, walls and ceilings from cooking activities
• Improves the air quality for kitchen staff by capturing the cooking emissions and filtering the air for recirculation within the workspace
• Air is drawn up through multistage filters and then returned to the kitchen through the front facing louvres above
• LED lighting and multi-speed fan

Application:

• From revision E onwards, all Woodson countertop filtration systems (W.CHD750 and W.CHD1000) are certified to meet the performance requirement's of NCC-2022 through deemed to satisfy and performance solution provisions
• Tested and certified for Australia & New Zealand
• Certified as a recirculating performance solution without connection to ductwork and with a reduced cooking surface to filter separation
• Certified for use with electrical cooking equipment including fryers
• Certified for a total equipment power rating of up to 10kW
• The unit MUST NOT be used with gas or solid-fuel fired equipment
• The multi-stage filtration reduces contaminants effectively to comply with the indoor air quality limits as per NCC-2022: F6V1 in an environment with adequate background ventilation
• Smoke emissions are reduced by the multi-stage filters2
• Adequate mechanical or natural ventilation must be provided to remove the heat and humidity from the room as per NCC-2022: F6P4 & F6D6
• Check with local authorities for any regulations in addition to the ventilation requirements of the NCC
